· High quality ABS outer case, resistant to impact and not easy to deform.
· Clear LED display for accurate counting readings.
· Wide counting range of 1-999900 to meet your needs.
· Equipped with a transparent cover to protect the control panel.
· Widely applied to remote control, communication, automatic control, mechatronics and so on.

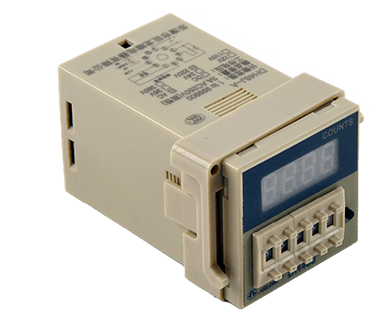

DH48J-A DH48J A digital timer counter time counter relay
Features:
· High quality ABS outer case, resistant to impact and not easy to deform.
· Clear LED display for accurate counting readings.
· Wide counting range of 1-999900 to meet your needs.
· Equipped with a transparent cover to protect the control panel.
· Widely applied to remote control, communication, automatic control, mechatronics and so on.
Specification:
Model: DH48J-A
Working Voltage: 24V AC/DC, 220VAC (Optional)
Counting Range: 1-999900
Counting : 30 times/second ()
Number of Terminals: 11 pins
Reset Mode: Panel reset or terminal reset
Reset Time: ≥0.05s
Counting Error: ≤1
Package Weight: Approx. 115g
Product Type: | Digital Counter Relay |
Model: | DH48J-A |
Contact Capacity: | 25V DC 5A/250V AC 3A Resistive |
Ambient Temperature: | -10℃~+50℃ |
Maximum Counting Rate: | LOW:≤ 30 times/Sec High:LOW:≤ 300 times/Sec |
Minimum Counting Pulse : | 15ms |
Operating Voltage AC: | AC 12V/24V/36V/110V/220V/380V |
Operating Voltage DC: | 12V/24V |
Electric Life: | 10^5 |
Mechanical life: | 10^7 |
Mounting Mode: | Panel mounting plug in |
Power consumption: | AC 1.5W / DC 2W |
Above sea level: | < 2000m |
Weight: | 0.184kg |
Product Type: | Digital Counter Relay |
Model: | DH48J-A |
Contact Capacity: | 25V DC 5A/250V AC 3A Resistive |
Ambient Temperature: | -10℃~+50℃ |
Maximum Counting Rate: | LOW:≤ 30 times/Sec High:LOW:≤ 300 times/Sec |
Minimum Counting Pulse : | 15ms |
Operating Voltage AC: | AC 12V/24V/36V/110V/220V/380V |
Operating Voltage DC: | 12V/24V |
Electric Life: | 10^5 |
Mechanical life: | 10^7 |
Mounting Mode: | Panel mounting plug in |
Power consumption: | AC 1.5W / DC 2W |
Above sea level: | < 2000m |
Weight: | 0.184kg |
