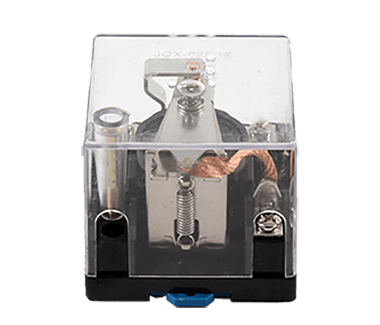

JQX-62F 1Z 120A Power Relay Relay
Features:
· 80A switching capability
· With Opening and Dust-Proof Type
· Outline dimensions: 69.0 X68.0X60.0
Contact Form | 1C |
Contact Material | Silver Alloy |
Max,Operating Current | 80A |
Max.Operating Voltage | 250VAC |
Max.Opearting Power | 20000VA |
Rated Load(Resistive load) | 100A 240VAC 28VDC |
HInsulation Resistance | 1000MΩ |
Dielectric Strength(Coil and Contact) | 2500VAC |
Ambient Temperature | -40°C~+70°C |
Operate/Release Time | 25ms/25ms |
Mechanical Llife | 1000000 |
Electrical Life | 50000 |
Terminal Type | Screw Mounting |
Contact Form | 1C |
Contact Material | Silver Alloy |
Max,Operating Current | 80A |
Max.Operating Voltage | 250VAC |
Max.Opearting Power | 20000VA |
Rated Load(Resistive load) | 100A 240VAC 28VDC |
HInsulation Resistance | 1000MΩ |
Dielectric Strength(Coil and Contact) | 2500VAC |
Ambient Temperature | -40°C~+70°C |
Operate/Release Time | 25ms/25ms |
Mechanical Llife | 1000000 |
Electrical Life | 50000 |
Terminal Type | Screw Mounting |
