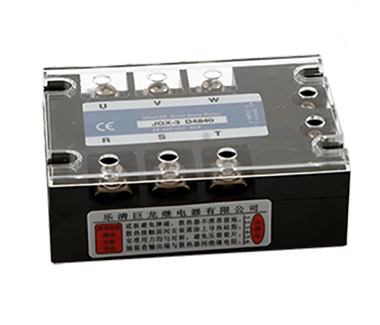

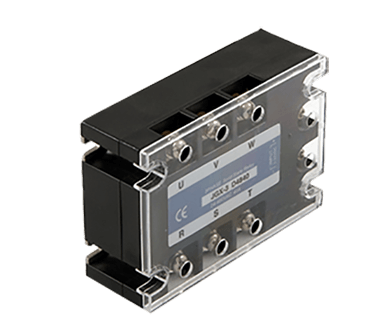

JGX-3 D4840 three phase SSR industrial solid state relay sensor switch
Application:
Used in computer peripheral interface equipment, electric furnace heating, thermostat equipment, CNC machinery, industrial automation equipment, signal lights, stage lighting lighting control equipment instrumentation,Medical equipment, photocopiers, plastic machinery, air conditioners, washing machines, in addition to chemical, coal and other explosion-proof, moisture, anti-corrosion occasions have a large number of use, as a substitute for electromagnetic relay The ideal product for AC contactor
Product description
Control voltage: | 5-32VDC |
Control current: | 6-35mA |
Load voltage: | 12-250VDC |
Load current: | 10A,25A,40A,60A,80A |
On-state voltage drop: | DC≤1.2V |
On-off time: | DC≤5ms |
Off-state leakage current: | DC≤5mA |
Load withstand voltage: | ≥2500VAC |
Ambient temperature: | -30~80℃ |
Dimensions: | 57.2L×43.5W×29H |
Installation method: | Bolt mounting |
NOTE: A heat sink must be installed above 10A load
More than 80A must be fanned with strong cooling water cooling
JGX-3 D4840 three phase SSR industrial solid state relay sensor switch
Application:
Used in computer peripheral interface equipment, electric furnace heating, thermostat equipment, CNC machinery, industrial automation equipment, signal lights, stage lighting lighting control equipment instrumentation,Medical equipment, photocopiers, plastic machinery, air conditioners, washing machines, in addition to chemical, coal and other explosion-proof, moisture, anti-corrosion occasions have a large number of use, as a substitute for electromagnetic relay The ideal product for AC contactor
Product description
Control voltage: | 5-32VDC |
Control current: | 6-35mA |
Load voltage: | 12-250VDC |
Load current: | 10A,25A,40A,60A,80A |
On-state voltage drop: | DC≤1.2V |
On-off time: | DC≤5ms |
Off-state leakage current: | DC≤5mA |
Load withstand voltage: | ≥2500VAC |
Ambient temperature: | -30~80℃ |
Dimensions: | 57.2L×43.5W×29H |
Installation method: | Bolt mounting |
NOTE: A heat sink must be installed above 10A load
More than 80A must be fanned with strong cooling water cooling
