1) Multi type signals input
2) PID control,error correction
3) Auto-Tuning
4) Multiple alarm modes
5) Optional positive-Negative of PID
6) Parameter lock to avoid improper operation
7) Used for industrial machinery,machine tools,measuring instruments

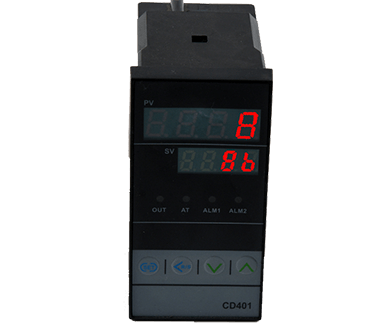

This series instruments are intelligent double-row four-digit display instruments, which display measured values and set values respectively. They can input a variety of signals. The instrument is equipped with four-button operation, easy parameter setting and convenient input of information. The control method have two-position control and PID control. The instrument adopts super anti-interference chip design and the quality is reliable.
The control modes have PID control and position control (also known as the hysteresis control or the upper and lower limit control). The PID control is a professional control method suitable for industrial control situations requiring high precision measurement control. PID is the abbreviation for proportion, integral, and differential. PID control combined the advantages of the three and have the function of timely and rapid proportion action, the ability to eliminate residuals with integral action, and the advanced control function of differential action. In addition, the self-tuning function of the meter can automatically calculate the optimal P.I.D. parameter value according to the control effect of the controlled object and automatically save it.
This series instruments are also with high cost performance.
Size code | 100 | 400 | 401 | 700 | 900 |
Panel size(W,H) | 48x48mm | 48x96mm | 96x48mm | 72x72mm | 96x96mm |
Panel back depth | 90mm | 90mm | 90mm | 90mm | 100mm |
Panel cutout size | +0.6 +0.6 45 x45 mm | +0.6 +0.6 45 x92 mm | +0.6 +0.6 92 x45 mm | +0.6 +0.6 68 x68 mm | +0.6 +0.6 92 x92 mm |
Power supply voltage | 100~240VAC, -15%, +10% 50/60Hz ; Or 24VDC/AC, -15%, +10% | ||||
Measurement accuracy |
0.25% FS ±1 Measurement unit | ||||
Input type and Measuring range | K(-50~+ 1300℃), S(-50~+1700℃), R(-50~+1700℃), T(-200~+350℃), E(0~800℃), J(0~1000℃), B(200~1800℃), N(0~1300℃), Cu50(-50~+150℃), PT100(-200~+600℃) Linear input:-9999~+9999(Free set) | ||||
Decimal point |
0.0, 0.00, 0.000 | ||||
Response time | 8 times/second,≤0.5 sec (when digital filter parameters dL=0) | ||||
Control mode | Adopting advanced PI artificial intelligence algorithm. | ||||
Output specification (modular) | Relay contact switch output (NO + NC):250VAC / 1A or 30VDC / 1A SCR non-contact switch output (NO + NC): 100 ~ 240VAC /0.2A (continuous), 2A (20mS instantaneous, repeat cycle is greater than 5S) SSR voltage output: 12VDC / 30mA (for driving SSR solid state relays) SCR trigger output: can trigger 5 ~ 500A of the two-way thyristor, two unidirectional SCR anti-parallel connection or controllable power module Linear current output: 0 ~ 20mA or 4 ~ 20mA can be defined (when installing X3 module output voltage ≥ 105V; X5 module output voltage ≥ 7V) | ||||
Electromagnetic compatibility |
IEC61000-4-4, 4KV/5KHz; IEC61000-4-5, 4KV | ||||
Operating ambient | 0~60 degree C; <90RH | ||||
Size code | 100 | 400 | 401 | 700 | 900 |
Panel size(W,H) | 48x48mm | 48x96mm | 96x48mm | 72x72mm | 96x96mm |
Panel back depth | 90mm | 90mm | 90mm | 90mm | 100mm |
Panel cutout size | +0.6 +0.6 45 x45 mm | +0.6 +0.6 45 x92 mm | +0.6 +0.6 92 x45 mm | +0.6 +0.6 68 x68 mm | +0.6 +0.6 92 x92 mm |
Power supply voltage | 100~240VAC, -15%, +10% 50/60Hz ; Or 24VDC/AC, -15%, +10% | ||||
Measurement accuracy |
0.25% FS ±1 Measurement unit | ||||
Input type and Measuring range | K(-50~+ 1300℃), S(-50~+1700℃), R(-50~+1700℃), T(-200~+350℃), E(0~800℃), J(0~1000℃), B(200~1800℃), N(0~1300℃), Cu50(-50~+150℃), PT100(-200~+600℃) Linear input:-9999~+9999(Free set) | ||||
Decimal point |
0.0, 0.00, 0.000 | ||||
Response time | 8 times/second,≤0.5 sec (when digital filter parameters dL=0) | ||||
Control mode | Adopting advanced PI artificial intelligence algorithm. | ||||
Output specification (modular) | Relay contact switch output (NO + NC):250VAC / 1A or 30VDC / 1A SCR non-contact switch output (NO + NC): 100 ~ 240VAC /0.2A (continuous), 2A (20mS instantaneous, repeat cycle is greater than 5S) SSR voltage output: 12VDC / 30mA (for driving SSR solid state relays) SCR trigger output: can trigger 5 ~ 500A of the two-way thyristor, two unidirectional SCR anti-parallel connection or controllable power module Linear current output: 0 ~ 20mA or 4 ~ 20mA can be defined (when installing X3 module output voltage ≥ 105V; X5 module output voltage ≥ 7V) | ||||
Electromagnetic compatibility |
IEC61000-4-4, 4KV/5KHz; IEC61000-4-5, 4KV | ||||
Operating ambient | 0~60 degree C; <90RH | ||||
