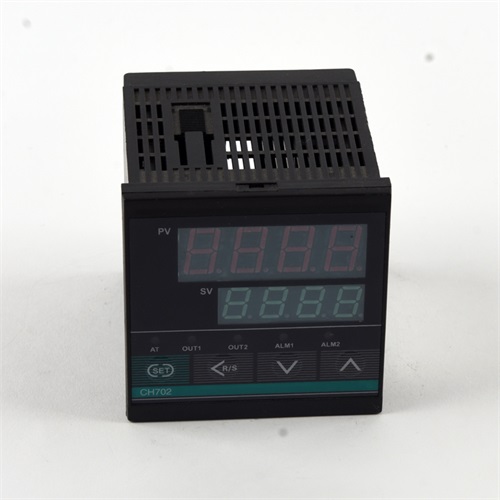

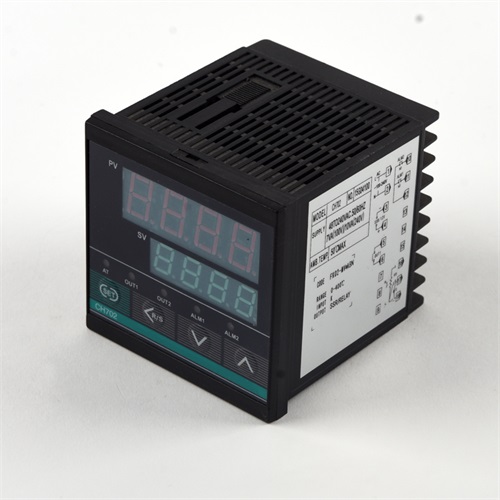

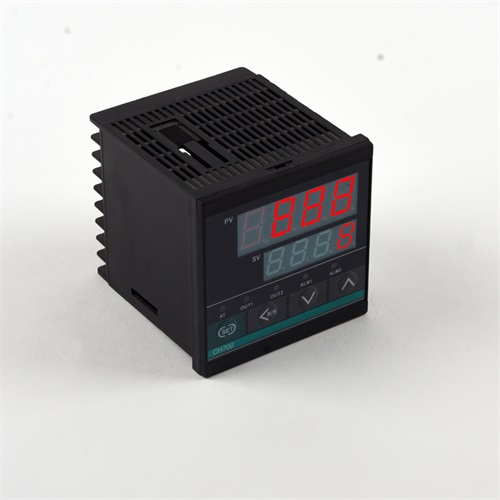

CH702

Accuracy:

0.5

Input:

K/E/J/R/S/B/N/T/PT100/CU500 adjustable

Output:

relay,SSR

Alram:

ALM 1,ALM 2

Control mode:

PID,ON/OFF

Power Supply:

48V-240V AC 50hz/60hz

Working Environment

Temperature 0°C~50°C RH:35%~85%

Weight:

180g

Power Supply

AC220V,50-60Hz

Input

All Input

Output

RELAY and SSR

Alarm

One

Range

0-1200℃

Accuracy of Measurement

±0.5%

Compensating error of cold side

±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )

Resolution

14Bit

Sampling Period

0.5 Secretary

Control Mode

Adopt industrial and PID Parameters of Control System,Temperature Control,responsible faster,Start modulation smaller,accuracy higher than troditionalPID

Insulation resistance

>50MΩ(500VDC)

Insulation resistance

1500V AC/min

Power Loss

<10VA

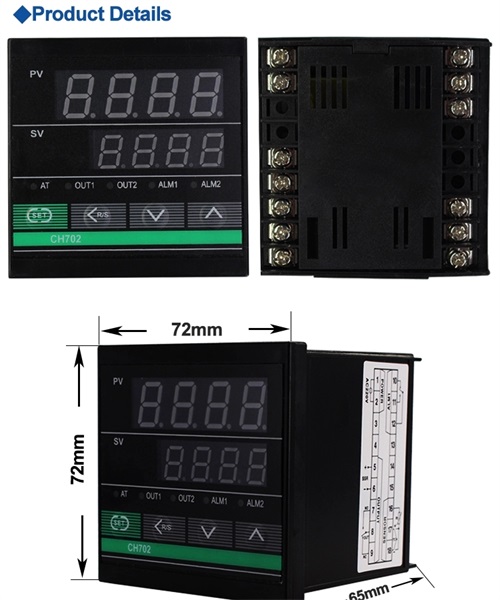

Outline Dimension

72*72*73mm

Install Dimension

68*68

Operating temperature

0-50℃
