Sampling rate: 2 times / sec
Adjustment mode: Intelligent PID regulation, according to different PID parameters can be composed of P (binary), PI, PD, PID regulation
Output mode(customizable):crelay contact AC220V / 5A, level signal 12V /20mA, zero crossing trigger thyristor, analog quantity can be customized
Alarm mode: upper limit (or upper deviation), lower limit (or lower deviation)
With manual control function, and manual automatic undisturbed switching
Power supply(customizable): 220 VAC, ± 10% / 50-60Hz
Power consumption: ≤ 5W
Ambient temperature: 0-50℃

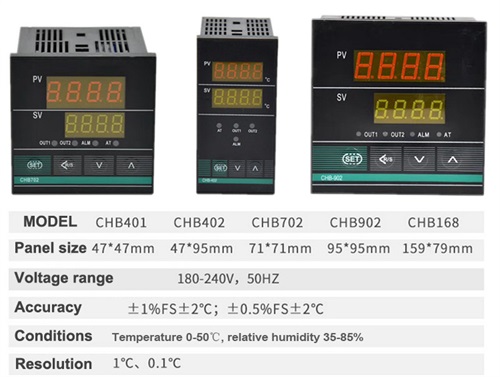

Type | CHB401 |
Power Supply | AC220V / 24VDC / 380VAC |
Input | K(-50~+ 1300℃),E(0~800℃), Cu50(-50~+150℃),PT100(-200~+600) |
Output | RELAY / SSR / 4~20mA / 0-10V |
Operating temperature | 0-50℃ |
Compensating error of cold side | ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature ) |
Control Mode | Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID |
Dimensions: | 48*48mm*86mm |
Accuracy: | 0.5 |
Input: | K/E/J/R/S/B/N/T/PT100/CU500 adjustable |
Output: | SSR |
Alram: | ALM1, ALM2 |
Control mode: | PID,ON/OFF |
Power Supply: | 180V-220V AC 50hz |
Working Environment | Temperature 0°C~50°C RH:35%~85% |
Weight: | 210g |
Type | CHB401 |
Power Supply | AC220V / 24VDC / 380VAC |
Input | K(-50~+ 1300℃),E(0~800℃), Cu50(-50~+150℃),PT100(-200~+600) |
Output | RELAY / SSR / 4~20mA / 0-10V |
Operating temperature | 0-50℃ |
Compensating error of cold side | ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature ) |
Control Mode | Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID |
Dimensions: | 48*48mm*86mm |
Accuracy: | 0.5 |
Input: | K/E/J/R/S/B/N/T/PT100/CU500 adjustable |
Output: | SSR |
Alram: | ALM1, ALM2 |
Control mode: | PID,ON/OFF |
Power Supply: | 180V-220V AC 50hz |
Working Environment | Temperature 0°C~50°C RH:35%~85% |
Weight: | 210g |
