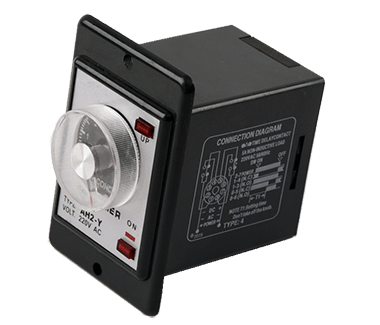

AH2-Y Time Relay is a high-precision and versatile timing control device widely used in industrial automation, electrical control, and various other applications. It provides accurate time-delay control, enabling users to implement complex timing operations in scenarios such as motor control, lighting systems, and mechanical equipment.
High Precision Timing
The AH2-Y Time Relay offers precise timing control with adjustable time ranges, ensuring accurate and stable operation for various applications.
Multiple Operating Modes
This relay supports multiple timing modes, including On-Delay, Off-Delay, and Interval timing, allowing users to flexibly adapt to different requirements.
Durable Design
Built with high-quality materials and industrial-grade construction, the AH2-Y Time Relay can operate reliably in harsh environments, including high temperatures, humidity, and vibration.
Easy Installation
The compact design and clearly labeled terminals make installation quick and straightforward, reducing setup and maintenance time.
Status Indication
Equipped with LED indicators, the relay provides real-time status feedback, enabling quick diagnostics and troubleshooting to improve operational efficiency.
Compact Size
Its small form factor saves space, making it suitable for installation in control cabinets and electrical enclosures.
The AH2-Y Time Relay is widely used in the following fields:
Motor Control: Delays the start and stop of motors to prevent damage from frequent switching.
Lighting Systems: Automates the switching of lighting equipment to save energy and improve management efficiency.
Automated Production Lines: Controls the operating time of machinery to ensure smooth production processes.
Pump Equipment: Manages the timing of pumps (e.g., water pumps, oil pumps) to optimize performance.
HVAC Systems: Implements timing control in heating, ventilation, and air conditioning systems to enhance energy efficiency and comfort.
Rated Voltage: AC/DC options available
Time Range: Adjustable from 0.1 seconds to several hours (specific range depends on the model)
Contact Capacity: Supports various load types (resistive, inductive loads)
Operating Temperature: -10°C to +55°C
Protection Rating: IP20 (suitable for indoor installation)
Specification and Technical Datas
· Used to control time sequence
· With front / back connecting socket
· LED display
· Voltage: AC12-380V 50/60Hz DC12-24V AC12-380V 50/60Hz DC12-24V
· Operation: On-delay with inst. contact
Timing Range: 1S, 2S, 3S, 6S, 10S, 12S, 30S, 60S 3M, 6M, 10M, 12M, 30M, 60M 3H, 6H, 12H, 24H
