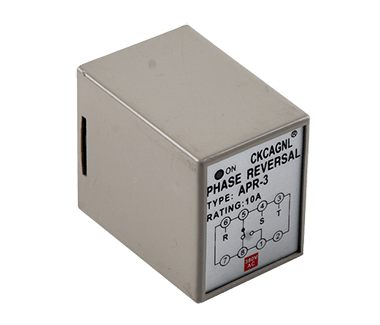

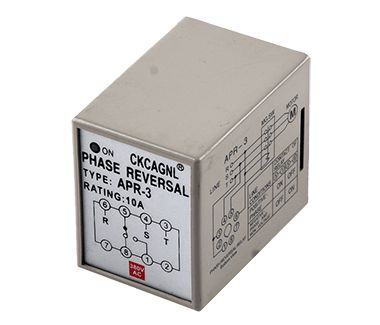

- Phase sequence failure protection relay.
- Available 3 wire
- Power Supply:3 x 110V AC, 3 x 220V AC, 3 x 380V AC, 3 x 400V AC , 3 x 415V AC,50/60Hz.
- Contact output: 10 A at 250 VAC/30 VDC, resistive load .
- Socket mounted with a PF083A(E) Socket
- Contact version :SPCO output
Type | APR-3 |
Dimensions (mm) | 50H × 40W × 58D |
Mouniing /Socket | PF-085A PF083A(E) |
Functions |
which can effectively protect the load |
With phase sequence protection function | |
Rated voltage | AC(V):220,240,380,415,440, 50/60Hz |
Contact rating | 10A 250VAC(Resistive load) |
Mechanical Life | 5×106times |
Electrical Life | 105times |
Insulation resistance | 100MΩ(DC 500V)min |
Dielectric strength | 1500VAC |
Consumed power | 2VA |
Ambient temperature | -10℃~+55℃ |
Ambient humidity | 48~85%RH |
Weight | 90g |
Type | APR-3 |
Dimensions (mm) | 50H × 40W × 58D |
Mouniing /Socket | PF-085A PF083A(E) |
Functions |
which can effectively protect the load |
With phase sequence protection function | |
Rated voltage | AC(V):220,240,380,415,440, 50/60Hz |
Contact rating | 10A 250VAC(Resistive load) |
Mechanical Life | 5×106times |
Electrical Life | 105times |
Insulation resistance | 100MΩ(DC 500V)min |
Dielectric strength | 1500VAC |
Consumed power | 2VA |
Ambient temperature | -10℃~+55℃ |
Ambient humidity | 48~85%RH |
Weight | 90g |
