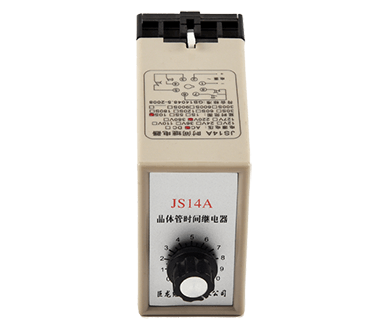

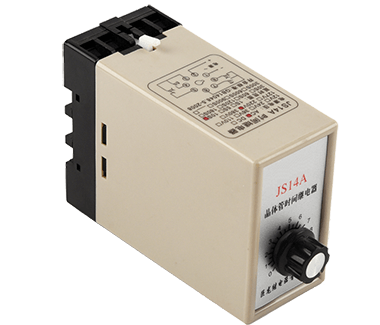

    JS14A time relay
    • JS14A time relay
    • JS14A time relay
    • JS14A time relay

    JS14A time relay

    Technical features:
    1. Supply voltage: AC (50Hz)36V, 110V, 127V, 220V, 380V; DC: 12V, 24V (other voltages can be customized);

    2. Delaying specification: 1s, 5s, 10s, 30s, 60s, 120s, 180s, 240s, 300s, 600s, 900s, 1200s, 1800s,  3600s;

    3. Electrical life: ≥ 10 × 104 times;
    4. Mechanical life: ≥ 100 × 104 times;
    5. Contact capacity: AC250V 5A ;
    6. Use the Class: AC-15 DC-13;
    7. Repeated the error: "1%;
    8. Reset time: ≤ 1 sec;
    9. Power consumption: ≤ 1.5W (DH11S ≤ 3W).



    installation condition:

    1, using the environment: the installation site is not more than 2000 meters above sea level; the  ambient air temperature does not exceed +40. C, and its average temperature within 24h does  not exceed +35. C, ambient air temperature of the lower limit of -5. C; the maximum temperature  is +40. C, air relative humidity of not more than 50%; at a lower temperature +20. C, allowing the  relative humidity of air no more than 90%. Occasionally, due to temperature changes of the  condensation produced by special measures to be taken;



    2, power supply voltage range of 85% -110% of rated voltage;



    3, in the absence of severe shock and blast the media, and media not sufficient to corrode metal  and damage insulation of gas and dust, rain and snow erosion in areas that are not used;



    4, vertical or horizontal installation.

    Working power:

     DC24V;AC24V,220V,380V

     Delay range:

     1s,6s,10s,30s,60s,120s,

     180s,300s,600s,900s,

     1200s,1800s,3600s;

     Repeat error:

     ≤1%

     Operating mode:

     JS14A, JS20 power-on delay
       JS20/03; power-on delay with momentary motion
       JS14A-Y; delay-conversion
       JS20D power failure delay

     Contact   form:

     JS14A, JS20, JS20D two sets of delay
       JS20/03 group delays a group of momentary motion

     Contact   container:

     3A AC220V (resistive)

     Dimensions:

     82×45×120mm

     Hole   Size:

     56-2×φ4.5mm

     Installation   method:

     Device type or 35mm rail



    Hot Tags: JS14A time relay, manufacturers, suppliers, factory, Customized

    Working power:

     DC24V;AC24V,220V,380V

     Delay range:

     1s,6s,10s,30s,60s,120s,

     180s,300s,600s,900s,

     1200s,1800s,3600s;

     Repeat error:

     ≤1%

     Operating mode:

     JS14A, JS20 power-on delay
       JS20/03; power-on delay with momentary motion
       JS14A-Y; delay-conversion
       JS20D power failure delay

     Contact   form:

     JS14A, JS20, JS20D two sets of delay
       JS20/03 group delays a group of momentary motion

     Contact   container:

     3A AC220V (resistive)

     Dimensions:

     82×45×120mm

     Hole   Size:

     56-2×φ4.5mm

     Installation   method:

     Device type or 35mm rail
