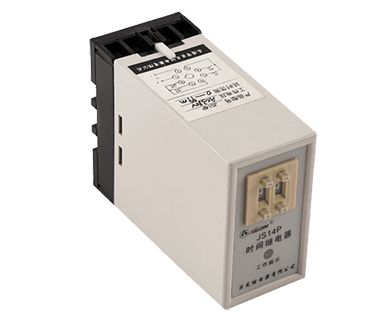

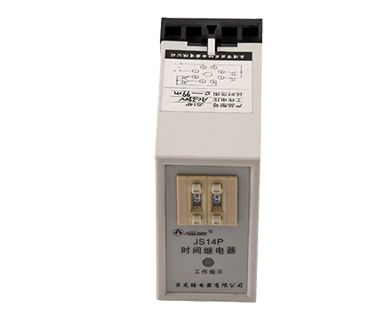

Accurate Time Delay: The JS14P time relay offers precise timing control, allowing users to set delays ranging from fractions of a second to several hours, depending on the model.
Digital Display: Many JS14P models feature a digital display for easy setup and monitoring of the time delay, enhancing user convenience.
Multiple Operation Modes: It supports various timing modes, such as on-delay, off-delay, and interval timing, making it adaptable to different application requirements.
Compact Design: The relay is designed to be compact and lightweight, making it suitable for installation in control panels with limited space.
High Reliability: Built to withstand harsh industrial environments, the JS14P ensures stable and long-lasting performance.
JS14P time relay operates using an internal timing mechanism, which can be either electronic or microprocessor-based, depending on the model. When the relay is powered, the timing circuit starts counting down the preset delay. Once the set time is reached, the relay's output contacts change state (e.g., normally open contacts close or normally closed contacts open), controlling the connected circuit accordingly.
Industrial Automation: Used to control the timing of machinery start/stop sequences, conveyor systems, and production lines.
Motor Control: Ideal for implementing delayed start or stop functions in motor control circuits.
Lighting Systems: Applied in lighting control systems for timed switching, such as in parking lots or streetlights.
HVAC Systems: Used in heating, ventilation, and air conditioning systems for timed operation of fans, pumps, or compressors.
Rated Voltage: Typically available in AC 110V, 220V, or DC 24V versions, depending on the model.
Time Delay Range: Adjustable from 0.1 seconds to 999 hours, depending on the specific model.
Contact Configuration: Usually includes both normally open (NO) and normally closed (NC) contacts.
Contact Rating: Commonly rated for 5A-10A, suitable for controlling small to medium loads.
Display: Digital LED or LCD display for easy time setting and monitoring (on certain models).
Power voltage | AC/DC 100-240V AC/DC 12-24V | Signal inout resistance | ≥4.7KΩ |
Input signal voltage | ≤30V | ||
Min Signal pulse width | ≥20 mS | Power | ≤4VA |
≥2mS | Weight | 0.25kg | |
1:1 signal duty cycle | Restoration | 1.Panal button reset | |
Digital signal input | 2.External terminal reset | ||
1.Contact signal | relay,limit switch | 3.Autimatic reset | |
2.Non-contact signal | Electro-option switch | contact capacity | AC250V 3A |
Singal | CP1:L | Contact endurance | ≥10³ |
CP2:H | Working temperature | -5~+40℃ | |
L=0~2V H=4~30V | Storage tenperature | -25~+55℃ | |
Hole size | 46x76mm | Working Humidity | 35~85%RF |
Count range | 0~9999 | Power failure memory | ≥19 years |
